BANSHEE (1987-2006) – Electric starter – Pre Order

$1,275.00 USD$1,525.00 USD

EAN: N/A SKU: N/A Category: Tags: , , , ,

Description

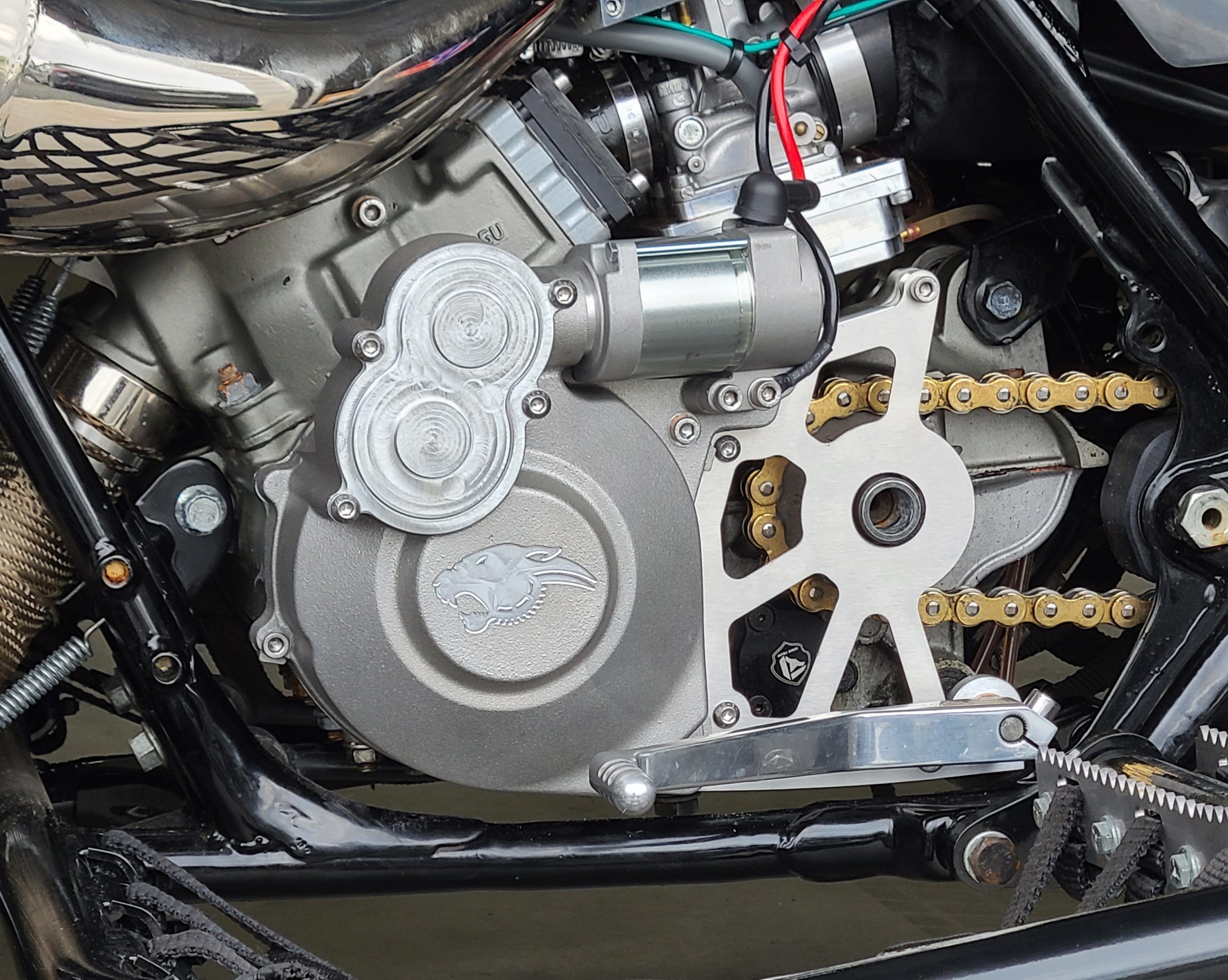

This listing is for the pre-order of the new electric starter kit for the Yamaha Banshee

You will be getting:

Aluminum  cover
Main ring gear with flywheel adaptor
Crown gear
Intermediate gear
General bearings
Bolting shaft
Gaskets and hardware
Electric motor
Battery box
Harness
Relay
Rectifier
Push button

What battery should I get ?

12V or 24V

Smaller engines like the original 350 will start perfectly fine on a 12V battery.

Bigger engine or very high compression ones might struggle to crank fast enough and require 24V.
In doubt, you can always choose the 12V configuration and upgrade after if the 24V is wanted,

Tools required

  • 3/8 drive socket wrench
  • Socket wrench extension
  • 8mm socket
  • 17mm socket
  • 5mm Allen drive bit (long tip)
  • 4mm Allen drive bit
  • 60-150 in-lb torque wrench
  • ½ drive 150 ft-lb torque wrench
  • RTV silicone
  • ATF oil

Main steps installation

  1. Battery box and wiring harness installation.
  2. Main gear installation
  3. Starter housing installation
  4. Starter and battery connection

PRESS THE BUTTON AND GO HAVE FUN !!

Maintenance

It is recommended to flush the oil after the first ride to eliminate particles generated by the gears first meshing and break in. Taking cover off to remove all particles is recommended versus only using the drain plug.

On a normal basis, change the oil at the same time as transmission oil.

Warranty Items

All merchandise manufactured by Panthera Motorsports has a warranty against manufacturing defects for a period of one (1) year from the date of original shipping. (See details)

Additional information

Weight N/A
Dimensions N/A
Battery

Not included, 12V 8 cells, 24V cranking (Two 12V AG SC-1)
